Sometimes we need to measure the corner of wall or slope ceiling, but the angle is not a right angle. Then how can we know the accurate angle to do cabinet design?
Following “8-step” instructions can be helpful.
1

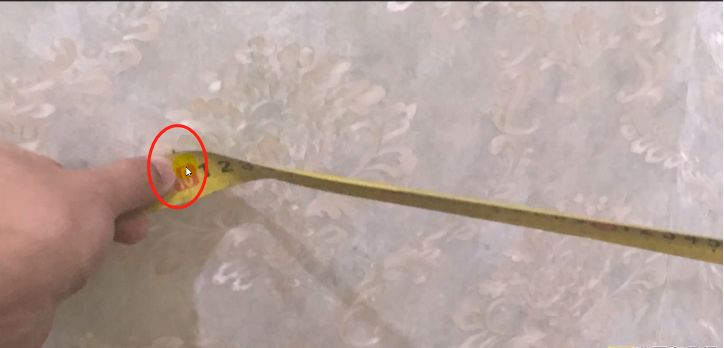

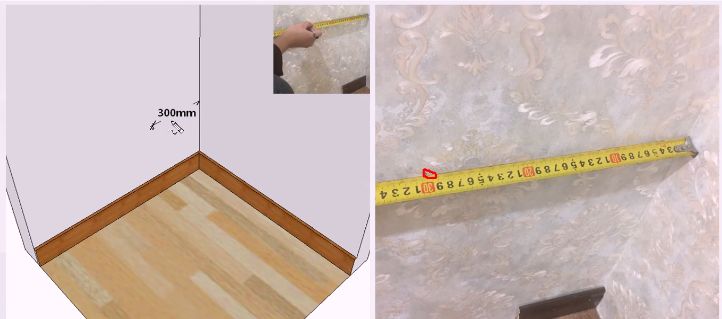

Step 1, Mark LEFT side 300mm from the corner.
2

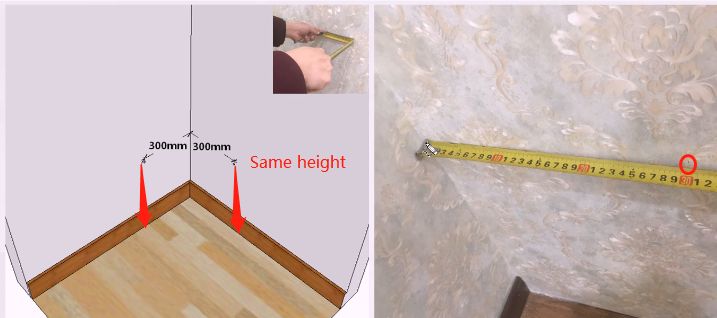

Step 2, Mark RIGHT side 300mm from the corner at the same height with left side.
3

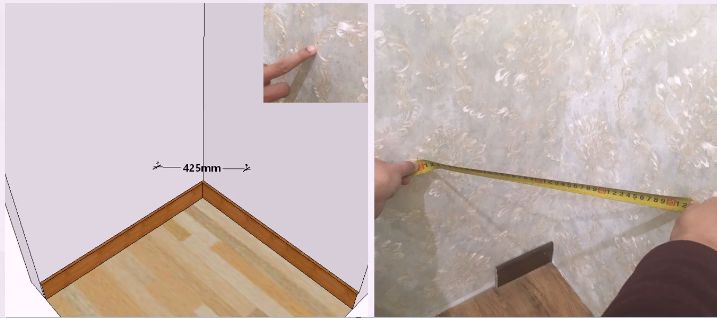

Step 3, measure the distance of the two marks.
4
Step 4, use AutoCAD to calculate the angle (according to the Pythagorean theorem).
5

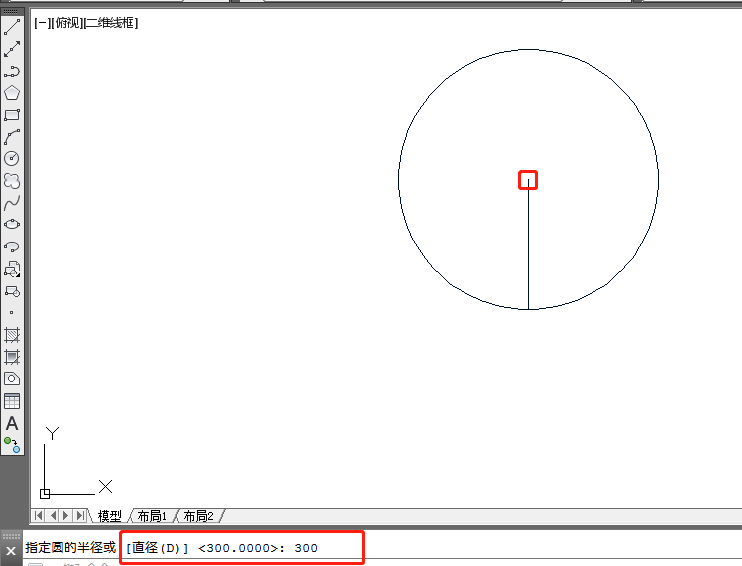

Step 5, draw a 300mm line and a circle in 300 radius.
6
Step 6, draw another circle in the radius of the two marks distance value. E.g. 418mm.
7
Step 7, draw a new line to connect with the 300mm line which starts from the intersection point of two circles.
8
Step 8, use DIMANGULAR command to get the final angle.
Now it’s your time to practice this skill and make the unique cabinet design to win more deals. Good luck!
